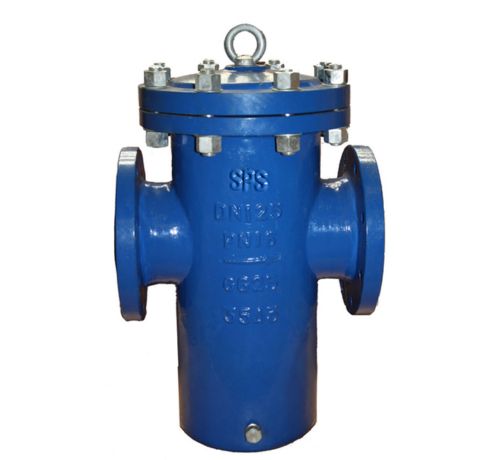

Kali PTFE Lining is a top Malaysian manufacturer of PTFE, FEP, and PFA Lined Bucket Type Strainer. The company offers effective and efficient filtration solutions. The Bucket Type Strainer has been given the name because of its bucket-shaped construction and is used for coarse filtration. MS FEP Lined Bucket Type Strainers offer longer working life, whereas SS 304 PFA Lined types are space-saving in assembly, high performance, and low pressure drop.
PTFE Lined Bucket Type Strainer is a filter employed in industry to remove solid particles from fluid within a pipe. It has a bucket-type strainer basket and internally lined with PTFE (Polytetrafluoroethylene) for its excellent chemical and corrosion resistance. Ideally suited for coarse filtration, it protects downstream equipment like pumps and valves from damage caused by debris. Applied primarily in chemical, pharmaceutical, and petrochemical processes, it has low pressure drop, durable service life, and high performance in strongly corrosive operating environments.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C
PP Max Temp : 100° C
PFA Max Temp : 200° C
Kali PTFE Lining is a leading supplier of PTFE Lined Bucket Type Strainer in Kuala Lumpur, Malaysia, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
|
NB |
ID1 |
ID2 |
H1 |
H2 |
L |
|
50 |
42 |
92 |
150 |
250 |
225 |
|
80 |
72 |
148 |
171 |
291 |
350 |
|
100 |
92 |
189 |
216 |
330 |
400 |
Ensures long-term performance with minimal maintenance requirements.
Suitable for a wide range of industries, including chemical, pharmaceutical, and food processing.
PTFE lining adds durability, ensuring the strainer withstands harsh operational conditions for extended periods.
Ensures effortless flow control and precise regulation.
A PTFE-lined bucket-type strainer is a filtration device designed to remove solid particles and debris from pipelines. It features a PTFE (Polytetrafluoroethylene) lining, making it highly resistant to corrosion, and is ideal for handling aggressive chemicals and corrosive fluids.
PTFE lined bucket type strainers are available in a wide range of sizes, typically from 15mm to 300mm, customizable to fit various pipeline requirements.
This type of strainer is commonly used in the chemical, pharmaceutical, and petrochemical industries, where it plays a crucial role in protecting equipment and maintaining system efficiency by filtering out contaminants in corrosive process lines.
PTFE lining provides excellent resistance to aggressive chemicals, high temperatures, and corrosion, ensuring longer service life and consistent performance in demanding environments.
Fluid enters the strainer, and solids are trapped in the perforated bucket. The filtered fluid then flows out, leaving contaminants collected in the removable bucket for easy cleaning.
We are the leading Manufacturer and Supplier of PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Malaysia.
